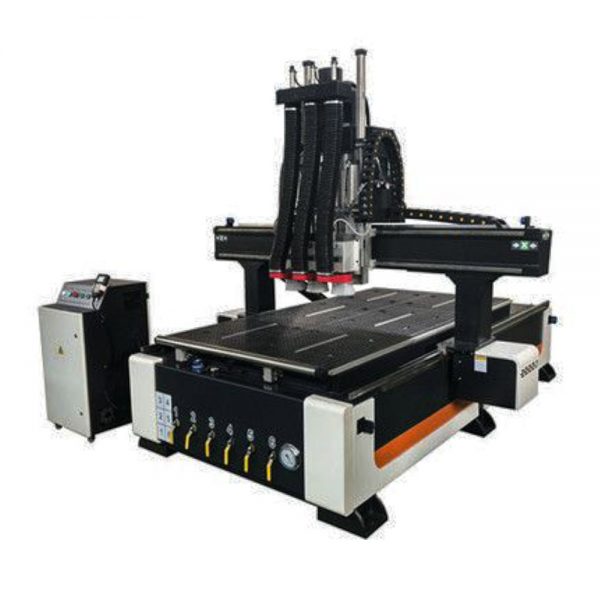

FC1325-3 CNC Router

Inquire Now

※DSP A15 Control
※China CC brand 4.5KW Air cooling spindle*3
※Heavy duty metal welding
※Vacuum table & T Slot table
※Leadshine 850W servo motor and driver
※Japan SHIMPO Reducer
※Original Taiwan TBI ball screw
※Original Taiwan HIWIN brand square rails
※Fuling Brand Inverter
※France Schneider electric parts

Category:

Description

Want create site? Find Free WordPress Themes and plugins.

1.Machine configuration and parameters

Control system RichAuto DSP A15 Control system
Spindle China CC brand 4.5kw air cooling,ER32,speed 6000-18000rpm/min
Machine body and gantry Heavy duty metal welding,Quenching and sandblasting,Twice painting
Table Vacuum & T slot
Driving system Leadshine 850w servo motor and driver
X, Y Axis structure Wuxi Xinyue 1.25M helical rack and Japan SHIMPO Reducer
Z Axis Structure Original Taiwan TBI ball screw
X Y Z Axis Square rails Original Taiwan HIWIN brand 25 square rails
Inverter Fuling Brand 5.5kw
Electric parts France Schneider
Limited switch Japan Omron
Machine cable German Siemens OEM factory cable
Oil lubrication Hand control with Aluminum oil pipe
Machine working size X Axis-1300mm ,Y Axis-2500mm ,Z Axis-200mm
Machine Size Length 3200mm ,Wide 2280mm ,High 2000mm
Machine Max.travel speed 50m/min
Machine Max.working speed 20m/min
Machine Voltage 3PH ,380V ,50/60HZ
Machine weight 1600kg

2. Machine Application

cnc router machine

(1) Classification

CNC router machine has different type for different application.

Woodwork engraving machine, tombstone engraving machine, advertising engraving machine, jade engraving machine, stone engraving machine, mold engraving machine, micro engraving machine, PCB circuit board engraving machine, metal engraving machine, glass engraving machine, mold engraving machine.

(2)  Material

CNC router machine can cut and engrave multi type materials.

Acrylic organic board, PVC board, hibiscus board, double color board, wood board, MDF, marble, fireboard, rubber board, glass, crystal, ABS board, stone, metal, aluminum plastic board, etc.

(3)  Business object

CNC wood router is widely used in many places.

Advertising companies, decoration companies, hotels, hotels, shopping malls, schools, hospitals, office buildings, bathing centers, groups, enterprises, etc.

(4) Application

CNC wood router machine is widely used in many fields and industries.

Advertising industry, process industry, mold industry, electronics industry, construction industry, printing and packaging industry, woodworking industry, decoration industry, tombstone industry, crystal products industry, etc.

a.  Advertising industry: advertising signs and logos, other advertising materials decorative products, wood, MDF, bamboo, plastic, PVC, acrylic, double color board, metals, stone etc cutting and engraving.

b. Furniture making: 3D wave board processing, cabinet doors, solid wood doors, craft wooden doors, paint-free doors, screens, craft fan windows, mahjong tables, computer desks and auxiliary processing of panel furniture products. wood door cutting, wood door artwork engraving, wave boards making, 3d photo engraving, small or large relief works, cylinder materials engraving, 3d photo engraving etc.

c. Artwork industry: Figure engraving, character engraving and cutting, name brand making, small gift cutting, souvenirs making, Carving various decoration letters, figures on small windows, fences, wall, etc.

d. Model making: Mold industry: It can engrave metal molds such as copper, aluminum and iron, as well as non metal molds such as artificial marble, sandstone, plastic board, PVC pipe and wood board.

e. Other industries: CNC wood router can engrave all kinds of large reliefs and shadow carvings, which are widely used in the craft gift industry.



3. Machine Description

1. CNC wood router machine body is welded with thick square seamless steel structure. Excellent stability and precision.

2. CZ CNC wood router uses high power spindle with constant power. Low noise and super strong cutting force. Improve work efficiency.

3. CNC wood router machine adopts famous brand drivers and motors, have powerful strength, fast work speed.

4. Wood router for sale has well compatibility: CAD / CAM design software e.g. Type 3 / Artcam / Castmate / Wentai etc.

5. CNC wood router has the function of re carving from break point if power failure.

6. The CNC router machine has the function of forecasting work time.

7. CNC wood router machine uses advanced NCstuido system and DSP, convenient operation.

8. We will provide you a set of knives and a toolbox with other accessories.

cnc router machine
