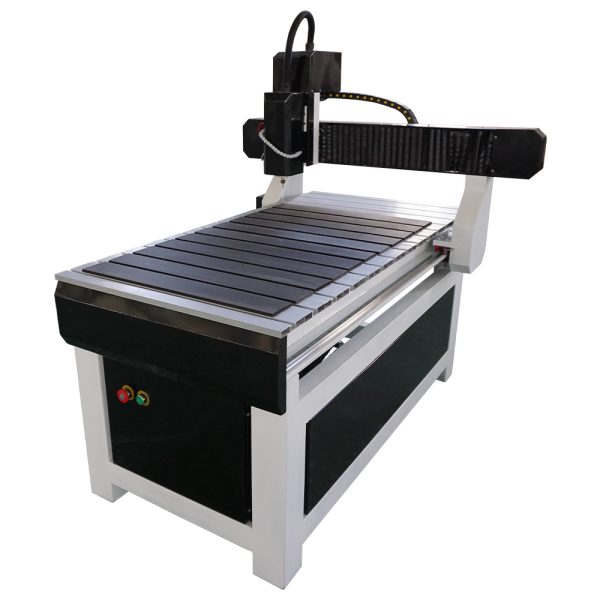

CNC router Machine XJ6090

Inquire Now

Mini desktop cnc router

  1. 600*900mm working range
  2. whole casting frame
  3. Efficiency water cooling spindle
  4. High accuracy
Category:

Description

Want create site? Find Free WordPress Themes and plugins.

Product specifications:

Platform Size (mm) 650mm* 1100mm
Engraving range (mm) 600mm* 900mm
Structure options Casting Iron struture
Platform material Iron
Table fixed type T-clip
X Axis structure 20mm linear square guide rail of HIWIN & Slanting gear rack
Y Axis structure 20mm linear square guide rail of HIWIN & Slanting gear rack
Z Axis structure 20mm APPA C5 screw
Z axis traveling height(mm) 180mm
Working Voltage 220V 50Hz
Spindle power (KW) 1.5KW, and 2.2/ 3.0KW optional
Spindle speed 0-24000 (r/ min)
Max Speed without material 0-20000 mm/ min
Max working speed 0-15000 mm/ min
X Axis Drive motor Stepping moter
Y Axis Drive motor Stepping moter
Z Axis Drive motor Stepping moter
Resolution 0.0025/ pluse
Diameter of cutting tools (mm) 3.175/ 4.0/ 6.0mm optional
ATC Yes/ No, optinal
Control system option WeiHong Motion Control System of Shanghai
Code formats G code, U00, mmg, nc
Cooling system Water cooling

Applicable materials:

Marble, Granit Acrylic, wood, bamboo, plastic, , double color board, glass, wooden board, MDF, rubber
